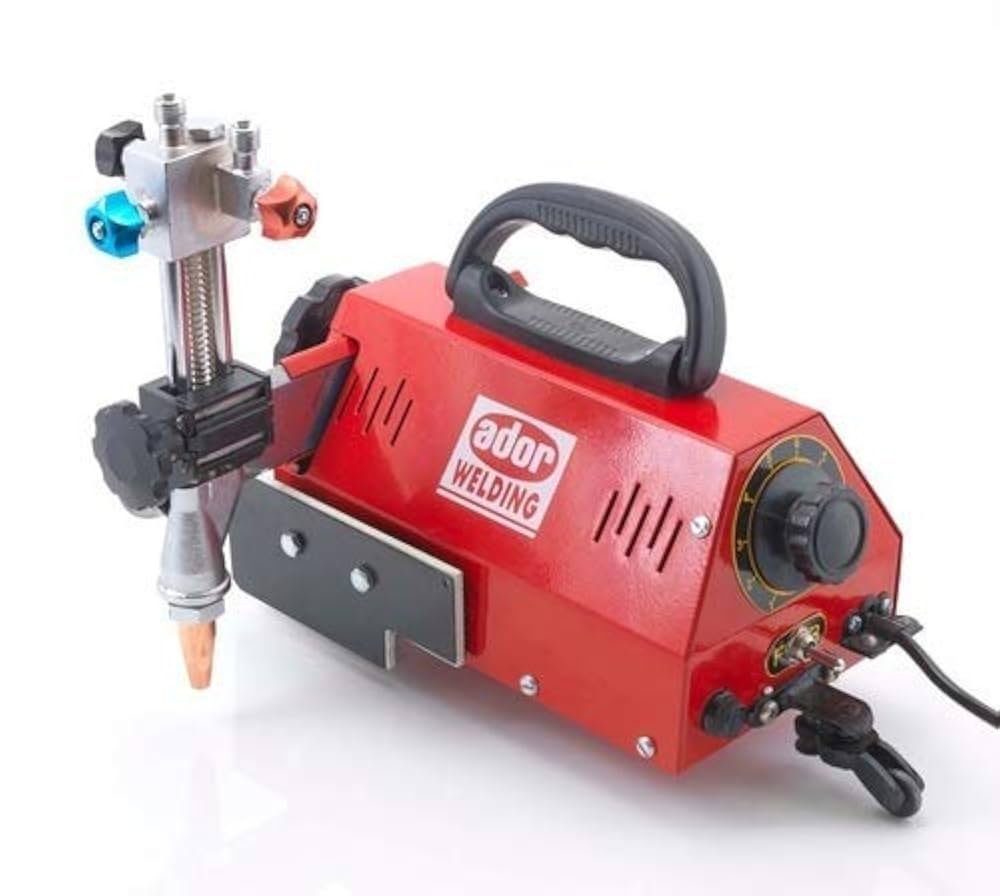

Pug Cutting Machines
Pug Cutting machine make ador
Original price was: ₹15,600.00.₹12,800.00Current price is: ₹12,800.00.
Features:-
- Unique design with louvers for ventilation which reduces overheating of motor and electrical parts
- Unbreakable,smooth and precise horizontal and vertical adjustment of torch
- Bevel setting with locking facility ensures bevel accuracy during continuous cutting operation
- Heat reflector with air gap, which protects the motor and other electrical parts from overheating
- Travels on standard 1.8 meter long extruded Aluminium rail track
- Versatile light weight and rugged machine designed for long, trouble free operation
| Model Name/Number |
KING PANTHER IM
|
| Brand |
ADOR WELDING
|
| Automation Grade |
Semi Automatic
|
| Usage/Application |
LONG PLATE CUTTING
|
| Power Supply V |
220 – 250V,SINGLE PHASE
|
| Cutting Capacity |
Up to 75 mm thick Plate
|
| Straight Cutting |
In 1.8 meters length or its multiples by adding extra track
|
| Circle Cutting (Optional) |
From DIA 150 mm TO 1200 MM (ATTACHMENT EXTRA)
|
| Bevel Cutting |
Up to 45 degree,50 mm thick plate
|
| Cutting Speed |
Min.: 0-200 mm/min.(approx) Max.: 800-1000 mm/min.(approx.)
|
| Horizontal Adjustment of Cutting Torch |
80mm
|
| Vertical Adjustment of Cutting Torch |
60mm
|
| Weight of the machine |
8 Kgs. (Approx.)
|
| Speed Control |
Wire Wound Potentiometer
|
| Inlet Gas Hose connections for Gas Torch |
1/4″ BSP RH & LH
|
| Cutting Nozzles (Optional) |
75 mm Length,A type for Oxy-Acetylene and P type for Oxy-LPG
|
| Availability |
In Stock
|
